V1 · Plug-in display for VESC
Your VESC tracks speed, power, battery and temps the entire ride — you just never get to see any of it. Tosh Dash puts it right in front of you on a crisp 2.2-inch color screen: speed you can read in a split second, watts in and out, and a battery gauge you can trust. Four wires, ten minutes, done.
On the screen
Nothing to press, nothing to dig through while you ride. You choose the screen and the layout once, from your phone — then the display just shows you what you asked for. Keep scrolling: these are the real screens, straight from the firmware.

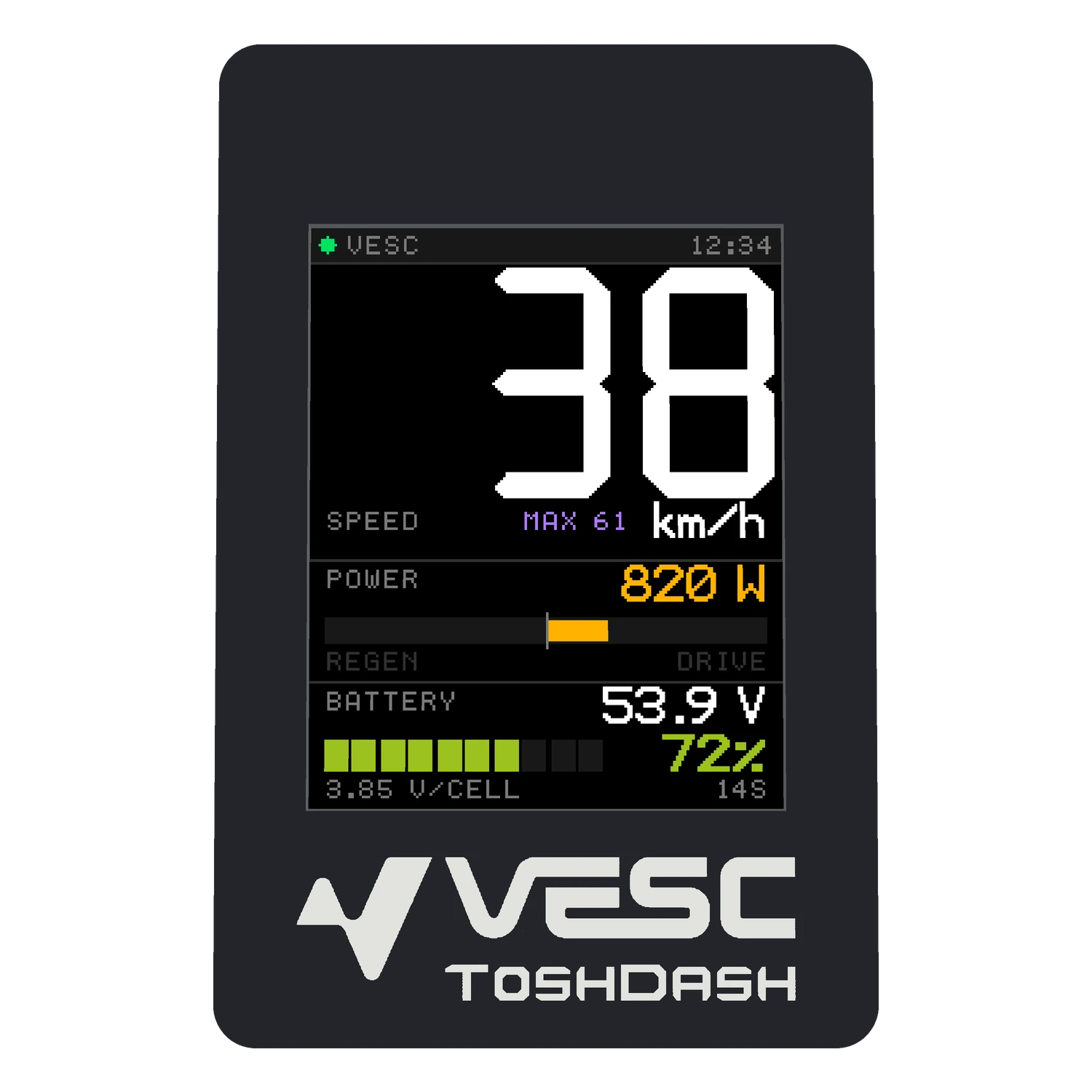

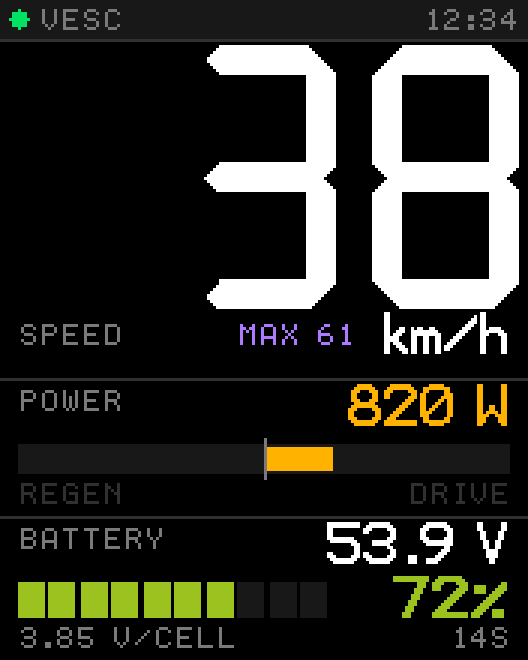

The number that matters gets half the screen. Below it: your top speed of the ride, live power and your battery — one glance, eyes back on the road. The digits never flicker, because only what changes is redrawn.

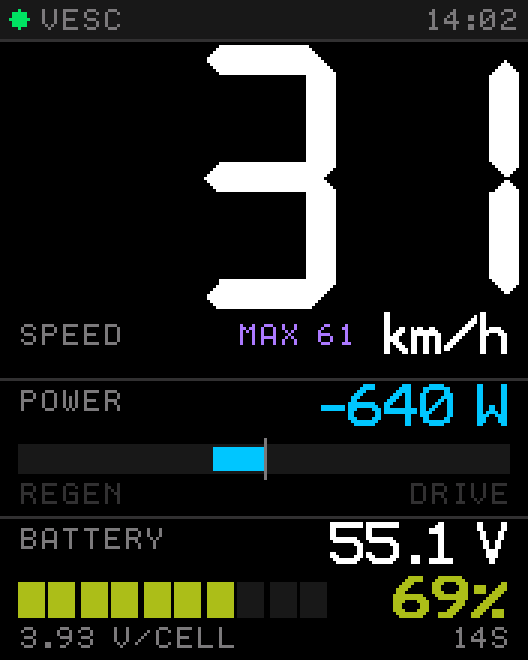

On the throttle, the bar runs amber to the right. Hit the brakes and it flips to cyan on the left: here, 640 watts flowing back into your pack. You finally see what regen is really worth.

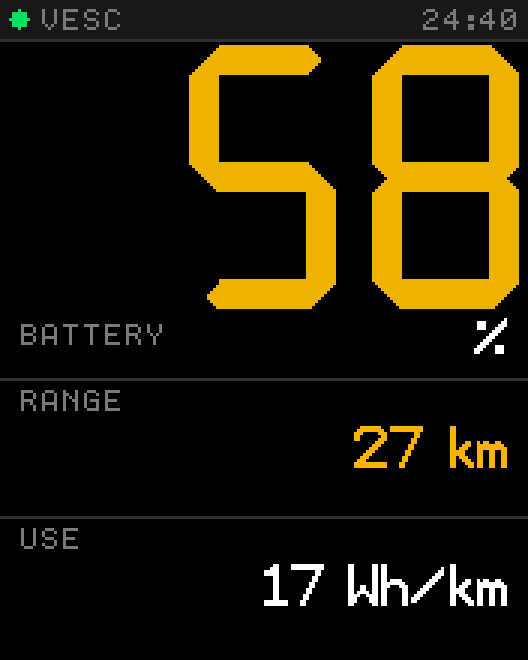

Put battery, range and consumption on your ride screen. Tosh Dash learns how much energy you really burn per kilometer or mile and turns the charge you have left into distance — for your pack, your riding, today.

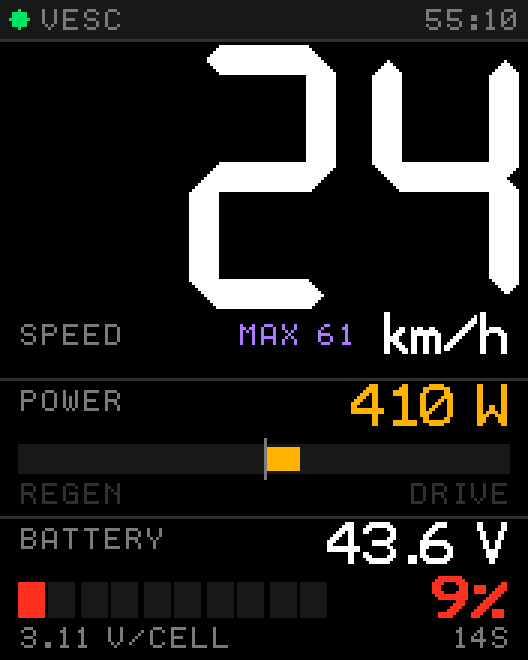

Bar and percentage go from green to amber to red as the pack drains, with volts per cell right underneath. You know it's time to turn around before your controller cuts the power.

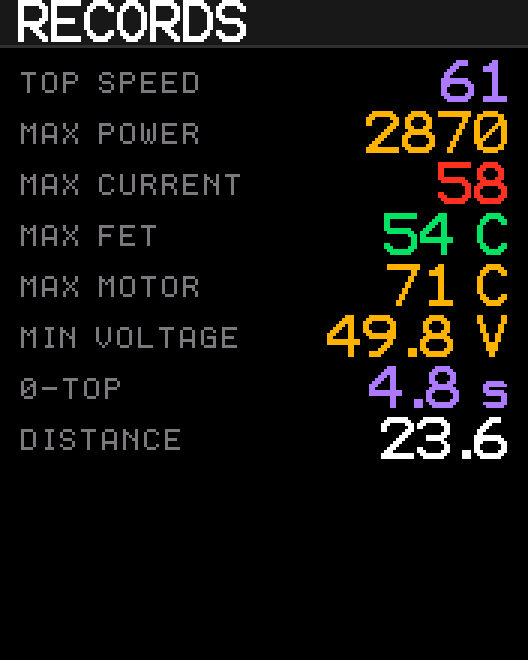

Top speed, peak power, peak current, your best acceleration time and the distance — plus the hottest FET and motor temps and the lowest voltage your pack dropped to. Proof for your buddies, early warnings for you. Starts fresh every time you power up.

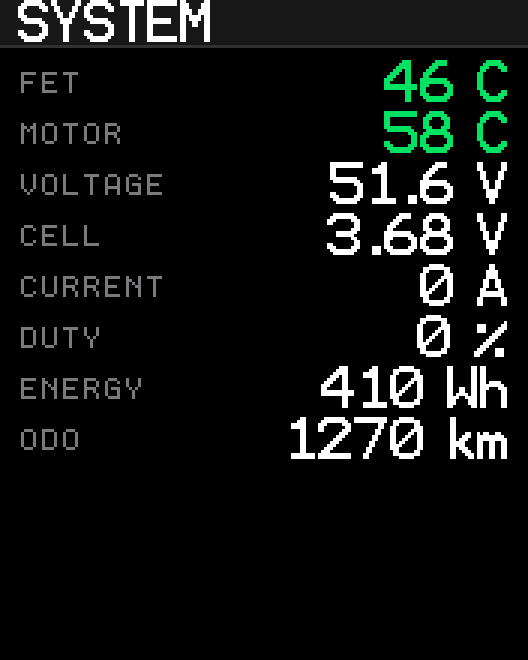

FET and motor temperature — green, amber or red, so you see trouble coming — pack and cell voltage, current, duty cycle, energy used and an odometer that keeps counting across rides. The screen you open when something feels off.
Make it yours

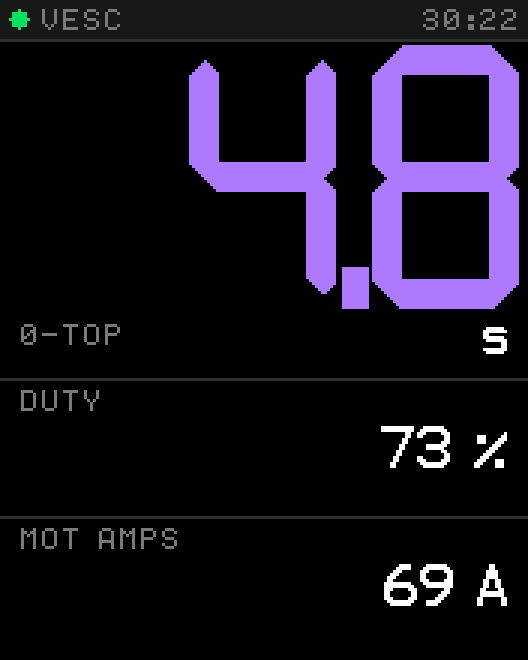

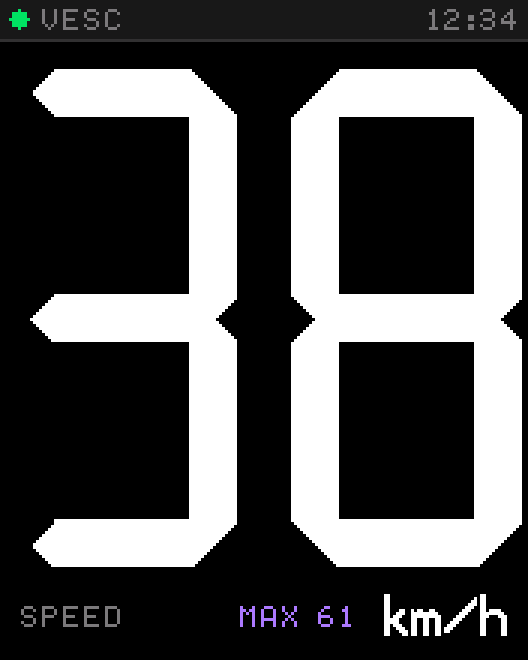

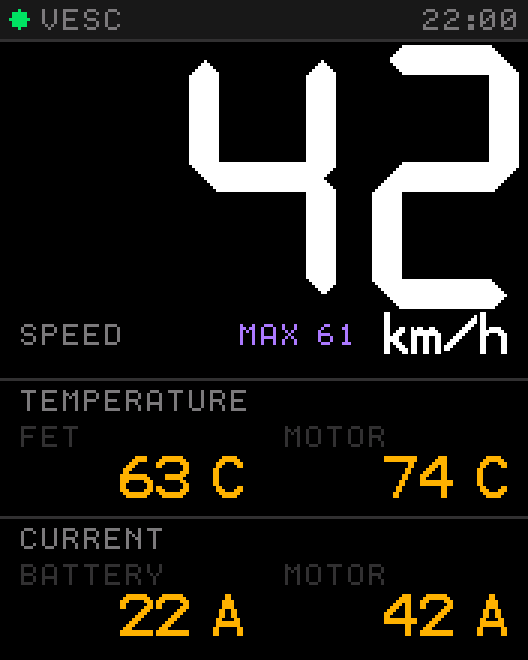

Every slot on the ride screen is yours to fill — speed, power, battery, range, temperatures, currents, acceleration time and more. Switch a slot off and the big number grows into the space. Pick a layout to see it.
These are real screens from the firmware, not mock-ups. You set the layout from your phone — no app, no account. See every setting →
Enclosure

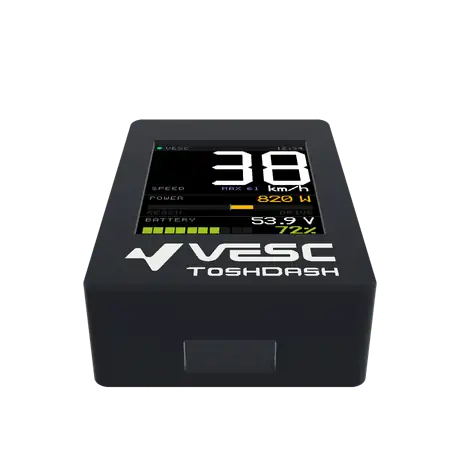

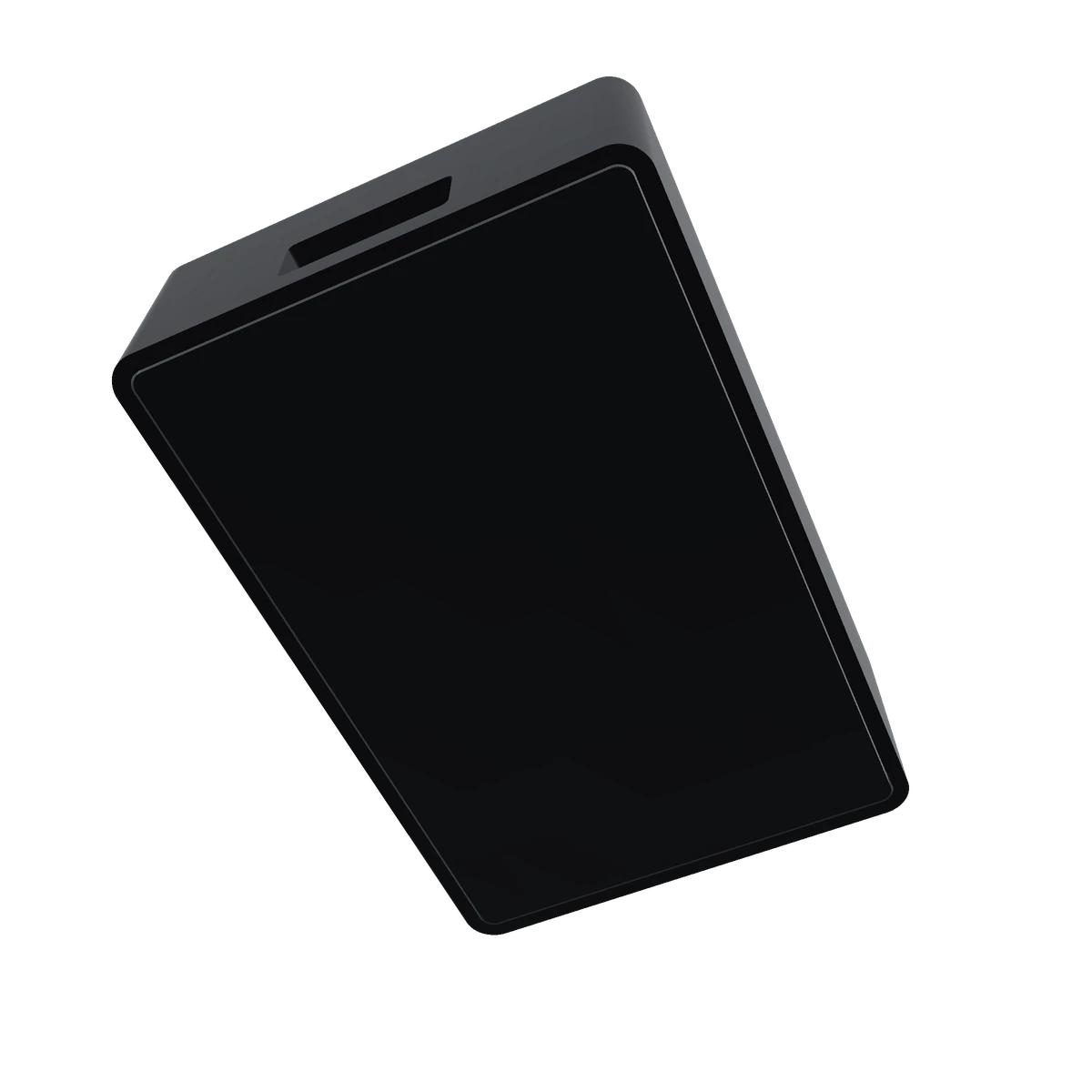

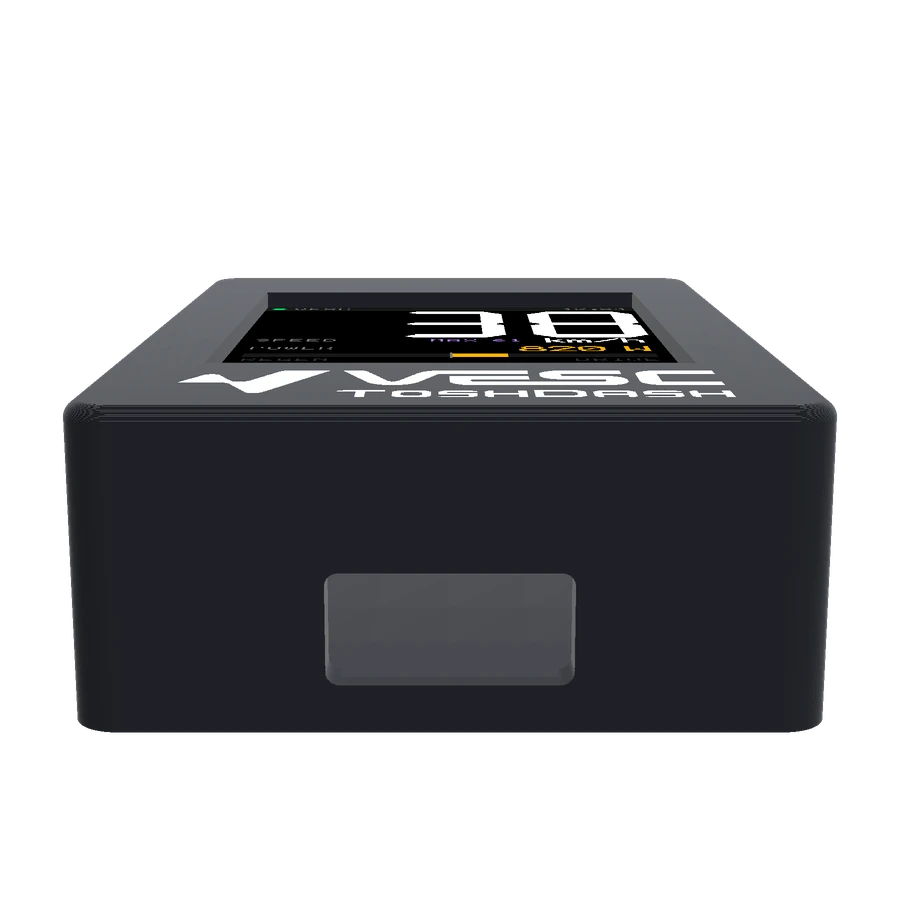

Tosh Dash arrives finished. The base plate is bonded in, so there are no screws to shake loose, no buttons to wear out and no reason to ever open it — updates and settings all happen over Wi-Fi.

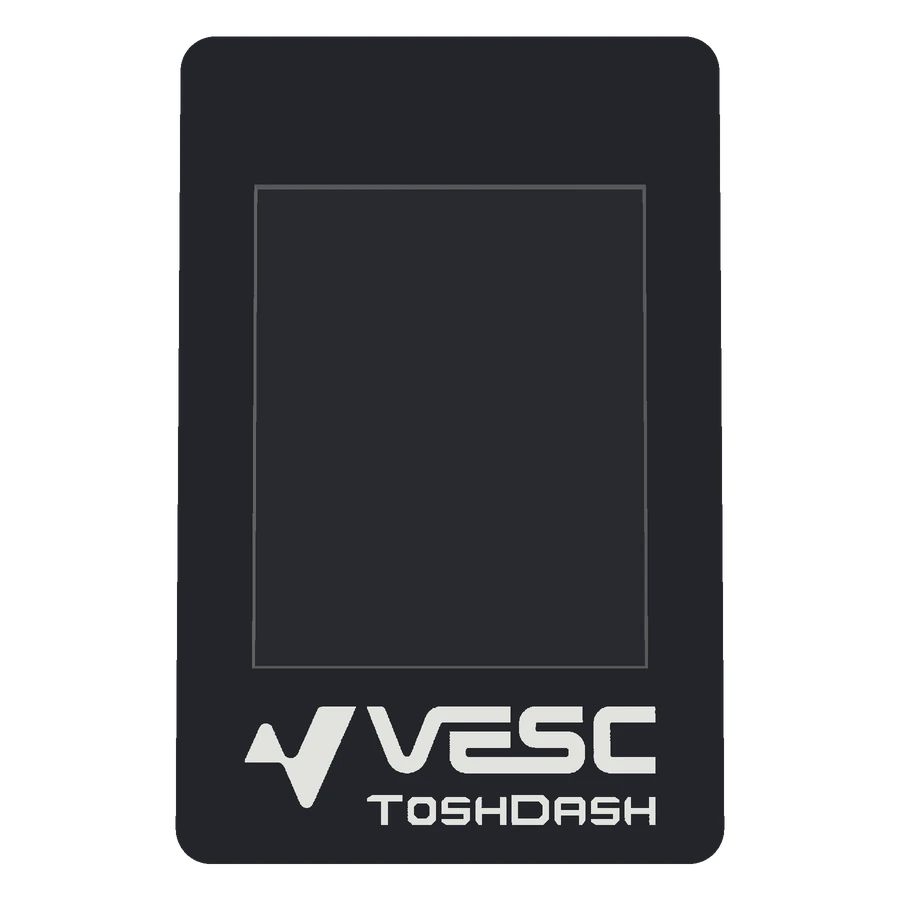

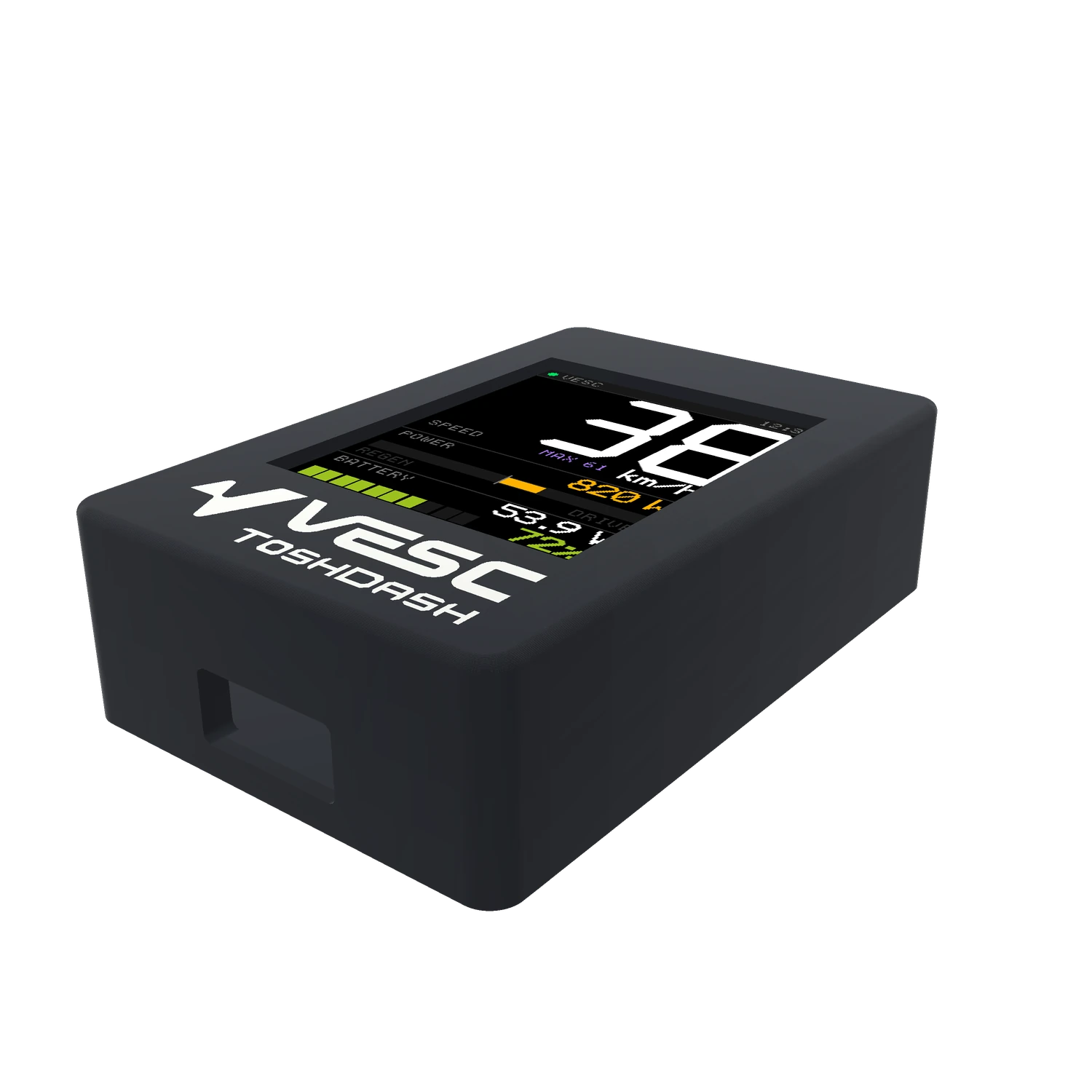

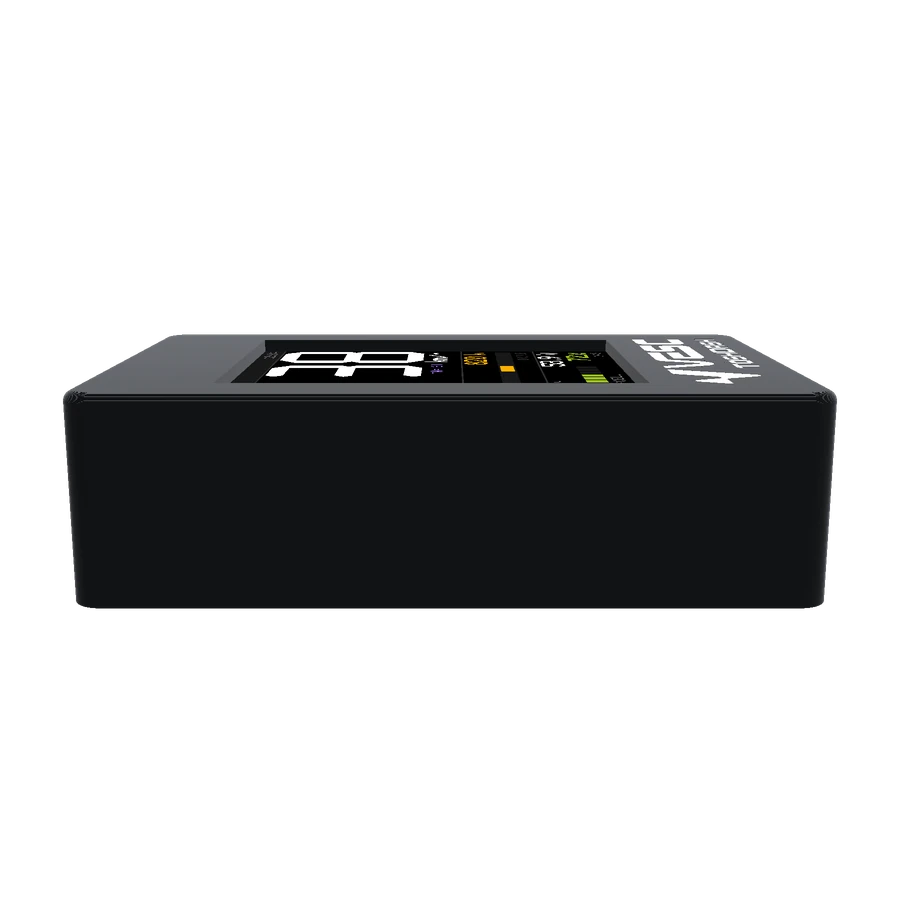

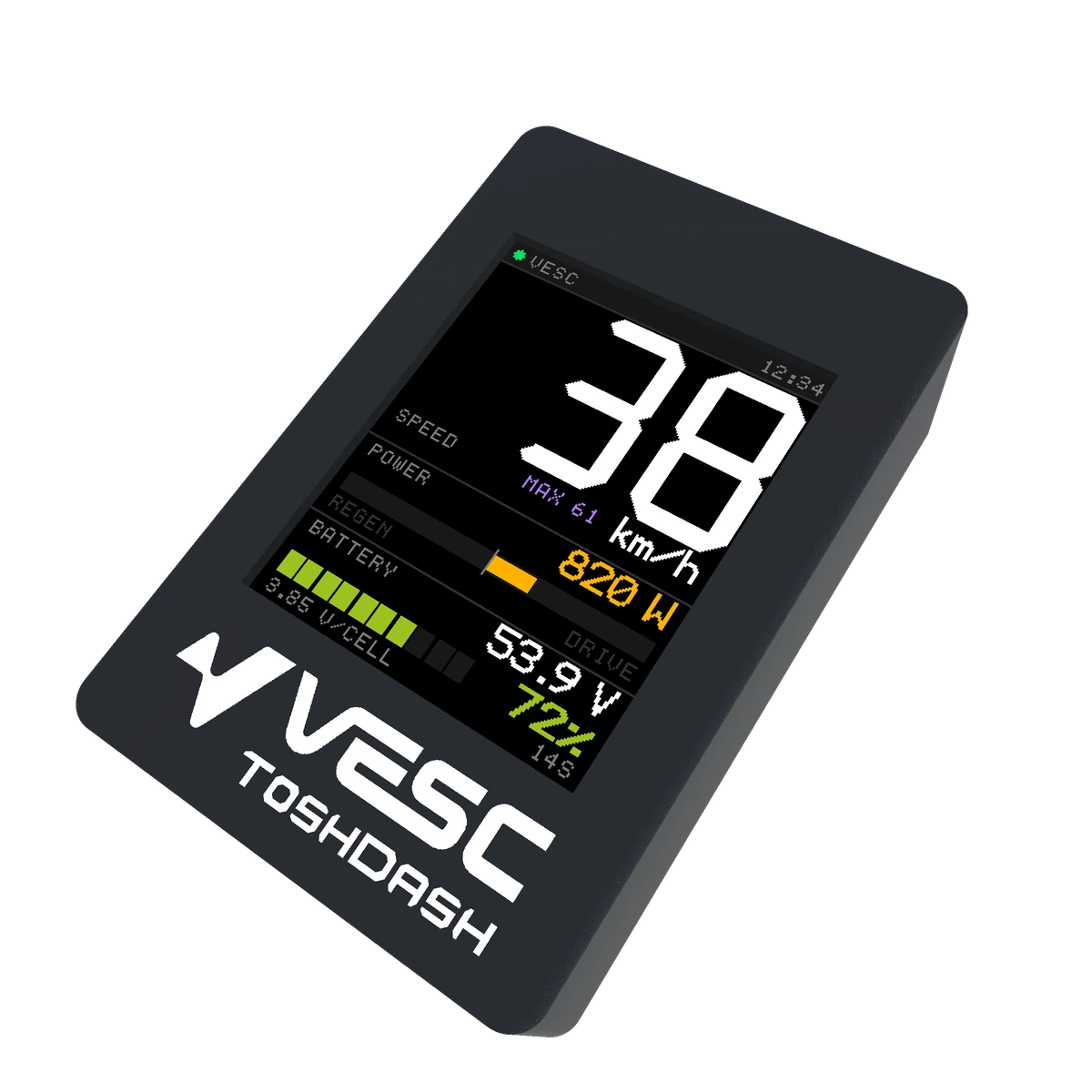

Smaller than a credit card and 20 mm slim, 3D-printed in tough PETG. The white logo is printed right into the lid — not a sticker that peels off after the first summer.
Switch it off and on three times in a row and it starts in a safe mode with just Wi-Fi and the updater. A bad update can't brick your display.
New firmware installs over Wi-Fi: open the settings page in your browser, pick the file, done. No cables, no tools — the case stays shut.
No app, no account, no cloud. If you add your home network, its name and password are stored on the device only — they never leave it.
Hookup
5V, ground, TX and RX to the UART port of your VESC. The controller powers the display, so there's no battery to charge and nothing to switch on — it wakes up with your ride.
Tosh Dash speaks the native VESC protocol and checks every packet, so you never see junk numbers. If your VESC stops talking, the dot in the corner turns red within two seconds — instead of freezing on old values. And your Bluetooth module on the NRF header keeps working alongside it.
Specs
| Feature | Spec |
|---|---|
| Display | 2.2″ color TFT, 176 × 220 px, 16 updates per second |
| Screens | Ride · Records · System |
| Ride screen | 3 slots, 20 values to choose from, km/h or mph |
| Size | 46 × 70 × 20 mm (1.8 × 2.8 × 0.8 in) |
| Display window | 33.4 × 41.0 mm |
| Enclosure | PETG, closed, base plate bonded in — no screws |
| Logo | white, printed into the lid |
| Power | 5 V from your VESC — no battery inside |
| VESC connection | UART, native VESC protocol, 115200 baud, every packet checked |
| Tested with | Spintend VESC-based controllers |
| Setup | in your browser over Wi-Fi — no app, no account |
| Firmware updates | free, over Wi-Fi from your browser |
| Controls | none on the device — everything over Wi-Fi |
| Weather | not waterproof — keep it out of heavy rain |
| Inside | ESP8266, ILI9225 display |
Installation & Help
Wiring, every setting with pictures of what it changes, and fixes for the things that usually go wrong. Tested with Spintend VESC-based controllers.
Start here Installation guide Four wires, two settings in VESC Tool, one Wi-Fi network. Step by step with pictures — about ten minutes. Open the guide
Fully assembled. Ready to ride.
€30incl. VAT · plus shipping
Two metres of four-wire flat ribbon cable for the run from your VESC's UART port to the display. Add it at checkout if you don't have suitable four-core wire lying around.
Sales start in
Sunday · 3:00 PM (Berlin) · 14 units · €30 incl. VAT
Sold out
We build Tosh Dash by hand in small batches — assembled, flashed and tested one at a time. Leave your email and you'll be first to know when batch 2 opens.
